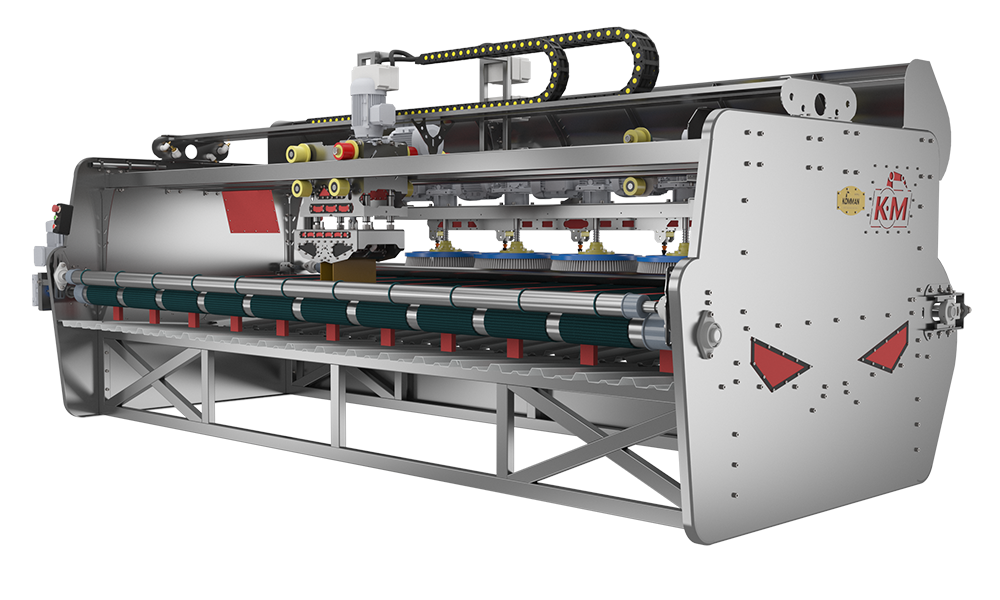

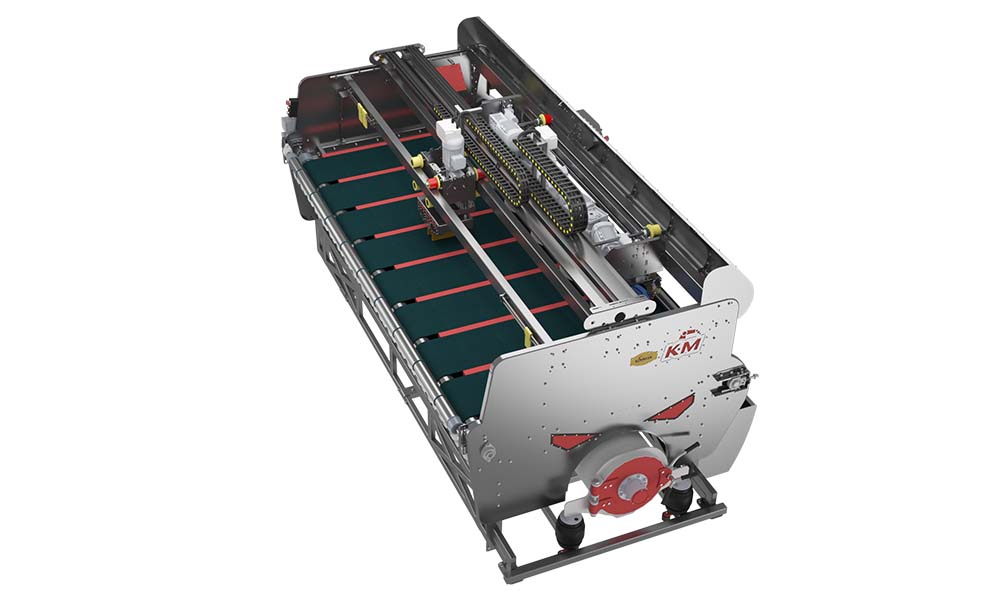

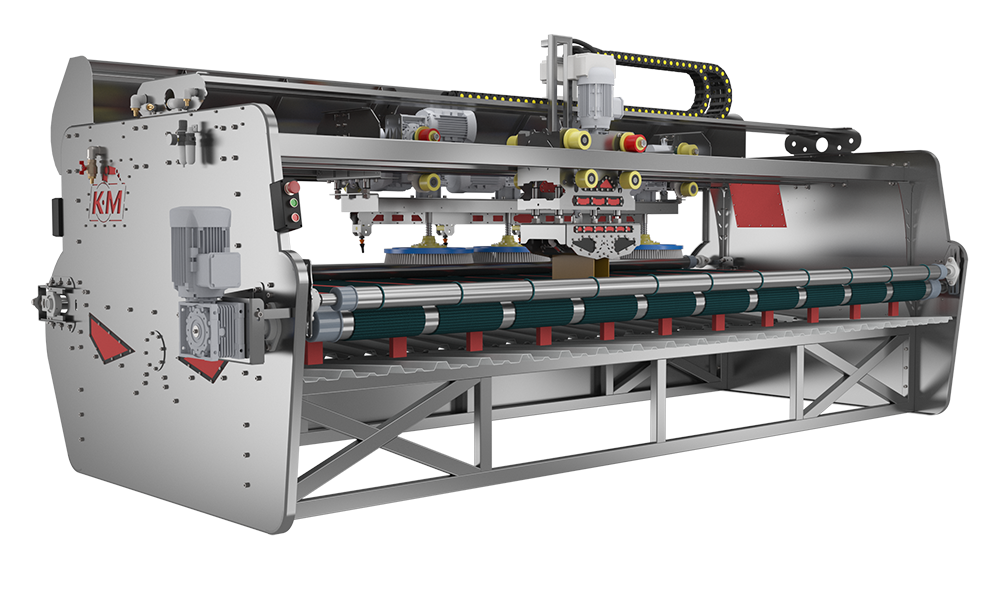

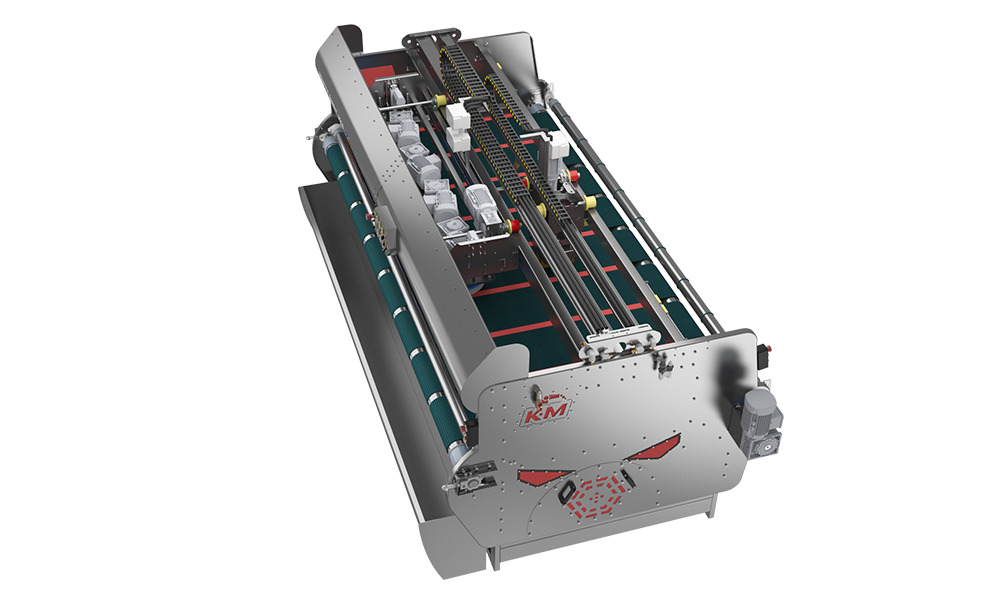

Potpuna automatska mašina za pranje tepiha i prostirki Monster Double Forceline 4200 Chromium

MONSTER DOUBLE FORCELINE 4200 Technical Specifications:

It has been designed as a compact machine with a total of 5 brushes, and both washing and wringing machine features are presented together.

It provides a great advantage to our valuable users in terms of space saving.

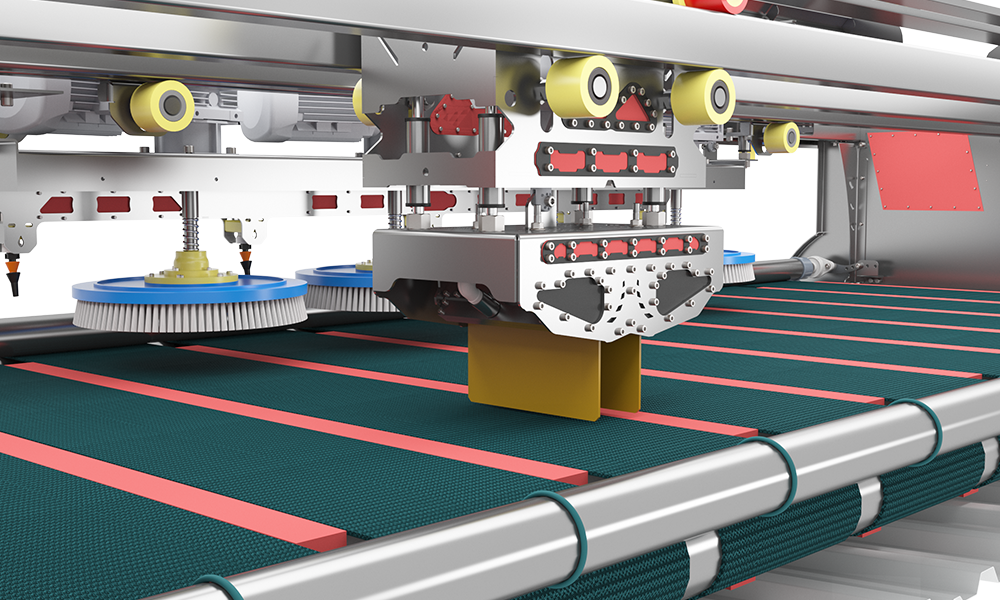

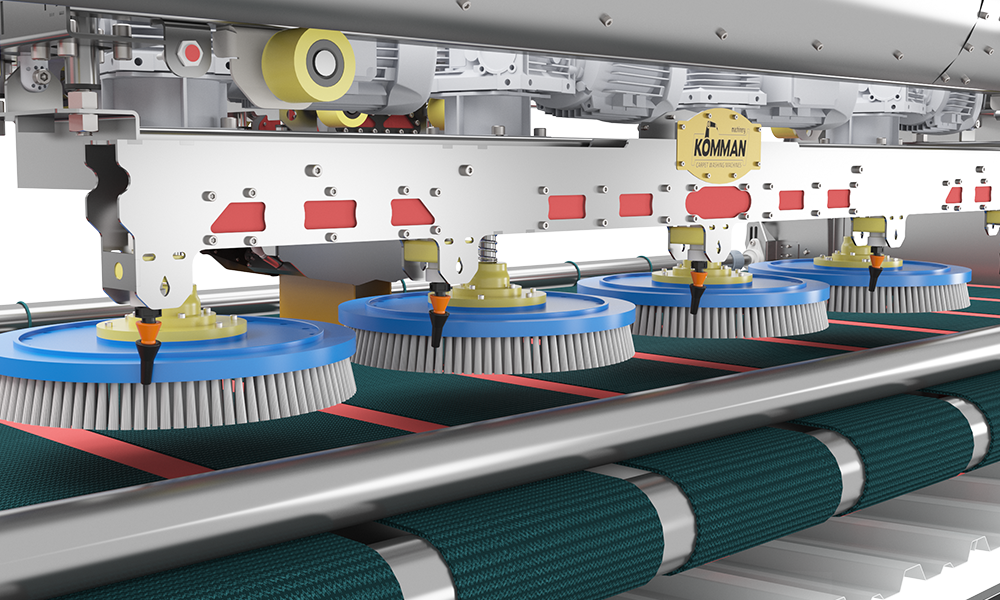

• 5 disc type brushing system

• Large diameter and 5 mm thick high strength conveyor drums

• Large diameter and high strength linear trolley shears

• Pneumatic carpet pressure system

• Spring pressure system for a homogeneous pressure on the carpet.

• Squeegee and rinsing system

• Moving rinse water system

• Carpet wrapping unit

• Possibility to wash all kinds of carpets

• 1st quality compact endless conveyor belt. ( Chemical resistant )

• Socket, adjustable belt tension and segmented belt system.

• Versatile, easy-to-use automation directory

• Pre-wetting system

• Optimum operation of the machine with horizontal movement control according to the width of the carpet.

• Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure

• The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been reduced to the level of the automotive industry.

• Minimum failure level

• Manufacturing according to the principle of working in the most severe conditions.

• Maximum output level with low energy and water consumption.

• Optionally, it can be produced as chrome, galvanized or epoxy oven painted.

• 4.20 Belt width - Compact endless conveyor belt

• Total Number of Brushes: 5

• Voltage: 380-50 / V-Hz

• Brush Motor Power: 1.1 KW

• Brushing units: 5 Disc Brushes

• Total Power: 14 KW

• Disc Brushes Motor Speed: 1400 rpm

• Brush Cycle: 200 rpm

• Brush Diameter: 420 mm

• 720 square meters carpet cleaning in 8 hours

• A carpet of 6 square meters can be washed in an average of 3 minutes.

• Carpet washing speed  1m/min per minute

• Electricity Consumption in 1 Hour: 11.50 KWh

• Width x Length x Height: 1930 x 5380 x 2000 mm

Bora 4200 Carpet Spinning Machine Technical Specifications:

Ø  Outer Drum Galvanized and Epoxy Primer Ship Painted

Ø  Inner Drum Chrome Stainless

Ø  Anti-Vibration Bellows and Shock Absorber System

Ø  Strong and Long-Lasting Bedding

Ø  Drum Cover Wear Resistant European Polyethylene Material

• Inner Drum Length: 4200 mm

• Inner Drum Thickness: 3 mm

• Inner Drum Diameter: 380 mm

• Engine Power: 5.5 kW

• Weight:  530 kg

• Dimensions: 1100*4800*1400

• Capacity: 500 m²/hour
